Nocpix Vista H35

Nocpix Vista H35

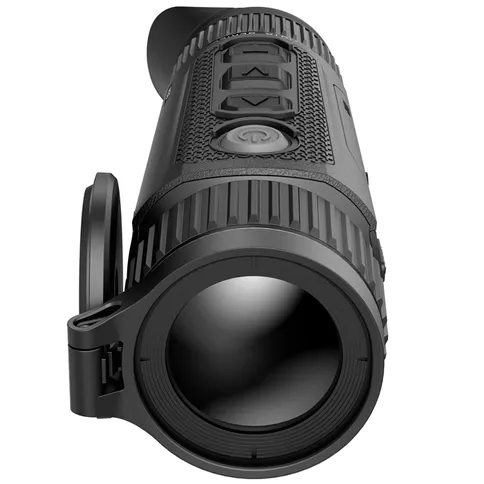

The Nocpix Vista H35 is a thermal imaging monocular. It is equipped with a 35mm F/0.9 lens and has a sensor resolution of 640 × 512px with a pixel size of 12μm. Thanks to a maximum magnification of 28x, you can get distant subjects close. It has a search range of 1800 metres and an angle of view of 12.5° x 10.0°. Fully charged, the Nocpix Vista H35 has a usage time of 5.5 hours.

VISTA's thermal imaging cameras are designed for various applications, including hunting, observation, security, terrain oriëntation and search and rescue operations. You can use the monoculars both at night and during the day and offer very good image quality even in adverse weather conditions, such as fog, smog and rain. Obstacles such as branches, tall grass and dense foliage are no problem for the VISTA monoculars. Thanks to electronic Image stabilisation, the view remains stable even at long distances. Binoculars are equipped with Nocpix image processing algorithm Reality+ which effectively eliminates noise and improves contrast, detail and clarity.

VISTA goes a step further than the LUMI series. For example, VISTA binoculars are equipped with the Vision+ system. Thanks to advanced sensor technology, temperature differences are captured with incredible accuracy. Images are thereby beautifully displayed on a 2560 × 2560px AMOLED display. The long eye relief design ensures comfort, allowing you to see the entire screen without straining. The unique round screen mimics natural vision, reducing eye fatigue and improving concentration.

The VISTA series is IP67-rated and can be used in temperatures between -20°C and 50°C. As a result, they can be taken anywhere.

Features of the Nocpix Vista H35

.
• Heat image monocular
• Lens: 35mm F/0.9
• Sensor resolution: 640 × 512px, 12μm
• Display: AMOLED 2560 × 2560px
• Magnification: 3-28x
• Search range: 1800 metres
• Angle of view: 12.5° x 10.0°
• Frame rate: 60Hz
• NETD: 15mK
• Diopter: -4 - +6
• Eye relief: 25mm
• Exit pupil: 8mm
• Use time: 5.5 hours (on full Batteries)
• Can be used both at night and during the day
• Good image quality in different weather conditions
• Obstacles in the landscape are filtered
• Electronic Image stabilisation
• Reality+ for reduced noise and improved contrast
• Vision+ system for incredible accuracy
• IP-67 rating
• Usable between -20°C and 50°C
• Storage capacity: 64GB
• Weight: 600 grams (including Batteries)
• Dimensions: 184×61×71mm

Contents of the packaging

• Nocpix Vista H35
• Storage bag
• IBP-7 li-ion battery pack 4400mAh (2x)
• Data cable
• Carrier strap
• Cleaning cloth
• Quick Start Guide
