Hikmicro Eco_V Handheld Thermal Camera

Hikmicro Eco_V Handheld Thermal Camera

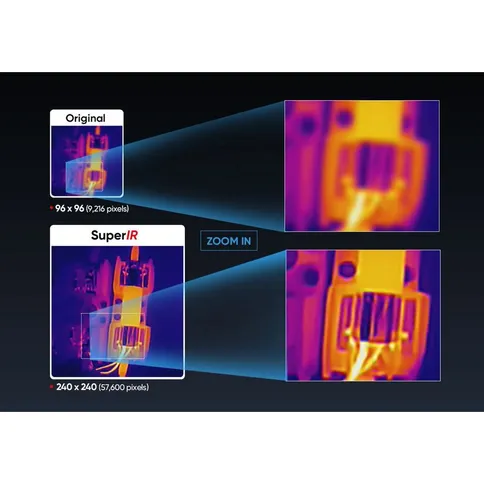

The Hikmicro Eco_V Handheld Thermal Camera is powered by Hikmicro SuperIR image enhancement technology and scales up thermal images from 96 x 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution in live viewing with a fast frame rate of 25 Hz and taking photos.

Built-in IR camera and visible camera, allowing you to switch between 3 image modes (Thermal, Visual and Fusion). "Fusion" combines the key details of a 0.3 megapixel visual camera with the IR image, adding extra detail and clarity.

Scan large areas quickly with the 50° wide-angle lens to detect problems such as air infiltration, water leaks and insulation issues. Features an IP54-rated form factor, passes rigorous drop tests of up to 2 metres.

Accurate and wide temperature measurement on full screen. Supports full-screen radiometric image capture and automatically tracks max/min/centre points to locate temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C, with temperature accuracy to +/-2°C or +/-2% of reading.

Built-in 3350 mAh rechargeable Li-Ion battery and thoughtful automatic shut-off settings (5/10/20 minutes) allow up to 8 hours of continuous use.

Locating with laser pointer. Helps show the position of the centre point on the actual object. 1-click IR and visual image storage. By saving visual and thermal images simultaneously with a single click, you can get an efficient workflow and a quick inspection report. 7 colour palettes. Offers White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion and Above Alarm 7 colour palettes, so you can choose the ideal colour scale for your work.

Features of the Hikmicro Eco_V Handheld Thermal Camera

• IR resolution: 96 x 96 (9216 pixels)
• NETD: < 50 mK (@ 25 °C, F#=1.0)
• Image frequency: 25 Hz
• Detector height: 12 μm
• Spectral range: 7.5 to 14 μm
• Focal length: 1.35 mm
• F-number: F1.0
• Field of view (FOV): 50° x 50°
• Spatial resolution (IFOV): 8.89 mrad
• Focus mode: Focus free
• SuperIR: 240 x 240 (57,600 pixels)
• Distance to spot ratio (D:S): 112:1
• Minimum focus distance: 0.1 m
• Visual camera: 640 x 480
• Display: Resolution 240 x 320, 2.4-inch LCD screen
• Image modes: Thermal/Visual/Fusion
• Colour palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
• Object temperature range: -20°C to 550°C
• Accuracy: Max. (±2°C ±2%) at ambient temperature 25°C and object temperature above 0°C
• Measuring instruments: Middle spot, hot spot, cold spot
• Level and range mode: Automatic/Manual
• Storage media: Built-in 4G eMMC (user-available storage is less than rated capacity)
• Image storage capacity: Approximately 18,000 images
• USB interface: USB Type-C
• Battery type: Rechargeable Li-ion battery
• Battery operating time: Approximately 8 hours
• Battery charging time: About 3 hours fully charged (adapter output: 5 V 2 A)
• Protection level: IP54
• Drop test height: 2 m
• Operating temperature range: -10°C to 50°C
• Storage temperature range: -40°C to 70°C
• Relative humidity: < 95% non-condensing
• Tripod mounting: UNC 1/4"-20
• Dimensions: 196 x 117 x 59 mm
• Weight: Approximately 290 grams

Package Contents

• 1x Hikmicro Eco_V Handheld Thermal Camera
• 1x Wrist strap
• 1x 2-in-1 USB-A/C to USB-C cable
• 1x Quick start guide
