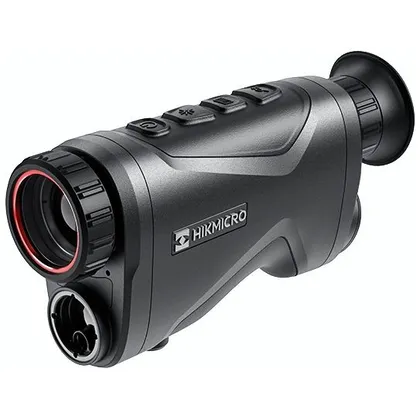

Hikmicro Condor CQ50L Thermal imager

Hikmicro Condor CQ50L Thermal Imaging Scope

With a focal length of 50 mm, a pixel size of 12 μm, a large 640 detector and a thermal sensitivity of less than 20mK, the Hikmicro Condor CQ50L Thermal Imager with a LRF of 1000m offers hunters fantastic benefits in both open fields and woodland areas.

Powerful high sensitivity (NETD<20mK) thermal detector of Hikmicro Condor thermal imaging monocular helps identify small details of objects and backgrounds easily and clearly in different weather and light conditions.

Hikmicro's self-developed imaging algorithms give Hikmicro Condor thermal monocular highly optimised images and remarkable details. These algorithms were developed based on extensive analysis of various hunting cène images and thermal imaging features.

Hikmicro Image Pro 2.0 ensures maximum digital image optimisation and provides high-quality rendering of both target objects and background, especially in original magnification. Hikmicro Zoom Pro can help present ultra-bright images with a higher signal-to-noise ratio and impressive detail, especially when using digital zoom.

Distance to game is essential to ensure a safe shot. The geïntegrated laser rangefinder in the Hikmicro Condor thermal monocular camera allows the user to measure a distance of up to 1,000m with an accuracy of ± 1 metre in different scenarios, enjoying the most accurate measurement of the situation.

The compact and easy-to-grip design of Hikmicro Condor perfectly suits the needs of the human hand. It is made of soft and skin-friendly material to ensure better handling for both left- and right-handed users.

Magnesium alloy design keeps the Hikmicro Condor thermal monocular camera a robust structure with light weight and improves stability to ensure prolonged use under all harsh environmental conditions.

Loss-resistant magnetic lens cover realises easy and silent installation and collection, ensuring better protection of the Hikmicro Condor SDLC lens.

Features of the Hikmicro Condor CQ50L Thermal Imaging Scope

• Imaging sensor: VOx Uncooled Focal Plane Arrays
• Maximum resolution: 640 x 512
• Frame rate: 50 Hz
• Pixel interval: 12μm
• Response waveband: 8μm to 14μm
• NETD: Less than 20 mK (@25°C),F#=1.0
• Lens (focal length): 50mm, F1.0
• Detection range: 2600 m
• Focus mode: focus ring
• Field of view (H x V), degrees/m @100m: 8.7° x 7.0°/15.2m x 12.2m
• Minimum focusing distance: 5.0 m
• Magnification: 3.0× - 24.0 (8x)
• Display: 1024x768, 0.39 inch, OLED
• Contrast adjustment: yes
• Luminance adjustment: yes
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC mode (Flat Field Correction): Auto, Manual, External Correction
• Output pupil: 4 mm
• Eye relief: 15 mm
• Diopter (range): -5D to +3D
• Image Pro: yes
• Protection level: IP67
• Weight: 450 grams without battery
• Dimensions: 197.1 x 60 x 94.9 mm
• Operating temperature: -30°C to 55°C
• Recording video: yes
• Snapshot capture: yes
• Hotspot: yes
• Standby mode: yes
• Storage: built-in memory module (64GB)
• PIP: yes
• Hot Track: yes
• Distance measurement: yes
• Audio recording: yes
• Battery type: replaceable and rechargeable Li-ion battery
• Battery duration: 4 hours of continuous running with CVBS and hotspot function off (@25°C, ééone supplied battery) / 6 hours of operation (LRF & hotspot on, @25°C, three supplied batteries)
• Type-C power supply: 5V DC, 2A. Supports external power supply

Contents of the package

• 1x Hikmicro Condor CQ50L Thermal Imaging Scope
• 3x Battery
• 1x Hand Strap
• 1x Battery Charger
• 1x Type-C cable
• 1x Lint-free cloth
• 1x Protective cover
• 1x Quick Start Guide
