Zoom UAC-232 32-Bit Float Audio Interface

Zoom UAC-232 32-Bit Float Audio Interface

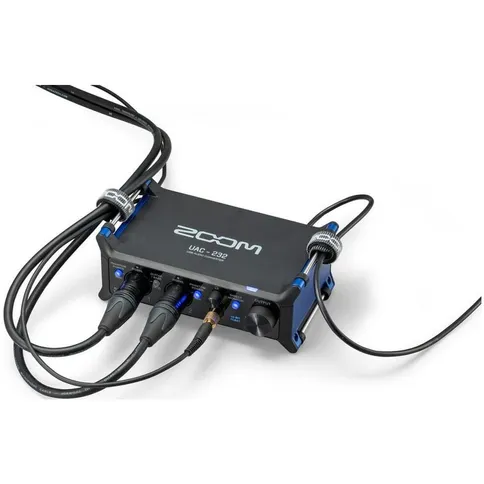

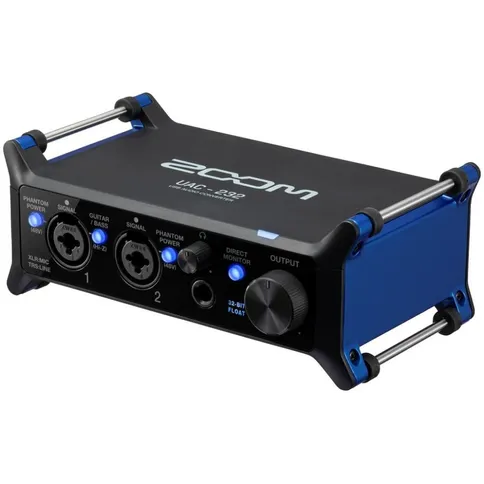

The Zoom UAC-232 32-Bit Float Audio Interface is the first dedicated 32-bit float audio interface, designed for musicians who demand more quality in their productions. The UAC-232 Audio Converter can be placed anywhere. Place it vertically, horizontally or attach it to a microphone stand with the included flat cable ties. The MIDI in/out lets you connect to external MIDI devices such as drum machines, synths and keyboards.

Whether you record in the Studio or on stage, sound levels can fluctuate. The UAC-232's 32-bit float technology captures clip-free, low-noise recordings without the need to set gain.

The UAC-232 features the same bright, low-noise preamps as Zoom's professional F-Series recorders and guarantees high-quality recordings in any environment.
The UAC-232 Mix Control Software lets you change I/O routing, activate loopback and control input and monitoring levels. You can also activate Music mode to route to your DAW or Streaming mode to combine all inputs into a single signal for streaming Software.

The Loopback function combines the input sound with playback from your Computer and routes it to your Software. Perfect for adding background music to your stream or singing live with an instrumental track.
Use the Direct Monitor switch to send the input signal directly to your headphones while sending the same signal to your DAW or streaming Software. Mix Control lets you adjust the volume and pan of your direct monitor input.

The UAC-232 USB Audio Converter has two XLR/TRS combo inputs for microphone or line level with +48V phantom power for condenser microphones. Use the Guitar/Bass button to activate Hi-Z for direct recording of guitar.

To listen on studio monitors, the UAC-232 includes two TRS main outputs with volume control.

Features of the Zoom UAC-232 32-Bit Float Audio Interface

• Dual AD switching with 32-bit float recording technology
• High-quality microphone preamps, the same as the Zoom F6
• 2x XLR/TRS combo inputs
• >Headphone output and 2x TRS main outputs
• Powerful headphone outputs (100 mW)
• Record up to 192 kHz sample rate
• Compatible with Windows, Mac and iOS devices (Android is not supported)
• Zoom Mix Control Software mixer
• MUSIC and STREAMING modes available through the Software to optimise I/O
• Loopback available through the Software
• Direct Monitor switch for latency-free recording
• Vertical or horizontal use
• MIDI IN/OUT for connection to external MIDI devices
• Bus-powered operation (separate power supply required for iOS devices with Lightning)
• Number of microphone inputs: 2
• Number of instrument inputs: 1
• Number of analogue outputs: 1 to 2
• Number of line inputs: 1 to 2
• Maximum analogue channels that can be used simultaneously: 2
• Maximum sample rate: 192 kHz
• Interface: USB-C
