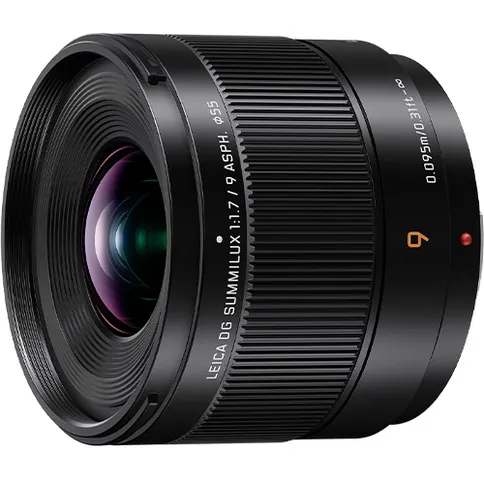

Panasonic MFT 9mm F/1.7 Leica DG Summilux ASPH (H-X09)

Panasonic MFT 9mm f/1.7 Leica DG Summilux ASPH (H-X09)

The Panasonic MFT 9mm f/1.7 Leica DG Summilux ASPH is a wide-angle lens for Lumix G cameras with the Micro Four Thirds system. The lens is unique due to its extremely short focusing distance of 9.5cm and a magnification of 0.25x (35mm camera equivalent: 0.5x). This allows you to put extra emphasis on the subject that stands out against an expansive background.

Enjoy high image quality for both photo and video recordings. The strict Leica standards result in a smooth, beautiful bokeh effect. Seven blades form a circular diaphragm opening. The lens design is made up of twelve elements divided into nine groups. Two aspherical lenses, two Extra-Low Dispersion lenses and an Ultra High Refractive Index lens suppress both axial chromatic aberration and chromatic aberration through magnification. The UHR lens also ensures uniform image quality from edge to edge.

The focus is smooth and quiet, so you can use the MFT 9mm f/1.7 well for your video productions. In non-linear mode, the focus point shifts by a variable amount, depending on the speed at which you rotate the focus ring. To shift the focus point by a fixed amount, use the linear mode. The amount of shifting then depends on how far you turn the focus ring. How far the focus point shifts per amount of rotation can be set from 90 to 360 degrees, in 30-degree increments. The lens is equipped with a special mechanism that suppresses focus breathing. Finally, the aperture control is in microsteps, allowing smooth adjustment of exposure.

The Panasonic MFT 9mm f/1.7 Leica DG Summilux ASPH is compact in size and, with a low weight of 130 grams, offers flexibility and portability. The dust and splash-resistant design means you can use it with confidence in harsh conditions.

Features of the Panasonic MFT 9mm f/1.7 Leica DG Summilux ASPH (H-X09):

• Wide angle lens for Lumix G cameras from Micro Four Thirds system
• 35mm equivalent focal length: 18mm
• Minimum focus distance: 9.5 cm
• Magnification: 0.25x (35mm camera equivalent: 0.5x)
• Smooth bokeh with seven aperture blades
• Lens design with twelve elements in nine groups
• Two aspherical lenses, two Extra-Low Dispersion lenses and an Ultra High Refractive Index lens
• Focus point shift sensitivity adjustable from 90 to 360 degrees (in 30 degree steps)
• Suppression of focus breathing
• Dust and splash-proof design
• Filter diameter: 55mm

In the Box:

• Panasonic MFT 9mm f/1.7 Leica DG Summilux ASPH (H-X09)
• Lens hood
