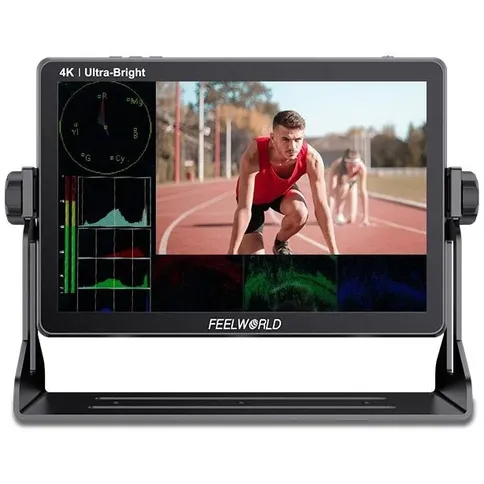

Feelworld 10.1" LUT11H Ultra Bright Camera Field Monitor

Feelworld 10.1" LUT11H Ultra Bright Camera Field Monitor

The Feelworld 10.1" LUT11H Ultra Bright Camera Field Monitor has a sharp 224ppi display and supports SD, HD, 2K, UHD 4K and DCI 4K video. At the back, the monitor is equipped with an integrated dual L-series battery slot. The monitor comes with a removable mounting plate that can be used to mount optional accessories, such as wireless transmitters or receivers.

The LCD panel has a resolution of 1920 x 1200 pixels, an aspect ratio of 16:10, a contrast ratio of 800:1 and a measured brightness of 2000cd/m², making it easy to see both indoors and outdoors. The touchscreen allows quick access to settings. The IPS LCD has a viewing angle of 170 degrees without distorting colours and contrast. This means you don't have to sit directly in front of the monitor to see the image properly.

On the bottom of the monitor you will find a DB-9 port, an HDMI output, two HDMI inputs and a DC 12V power input. On the side is the 3.5mm headphone jack and a DC 8V power output for your camera. The bottom also has a 1/4"-20 threaded mount for placement on a magic arm or tripod. On top of the monitor are three custom hotkeys for quickly calling up functions.

The LUT11H supports custom 3D LUTs to accurately assess camera colour on screen. Up to 50 LUTs can be loaded via an integrated SD memory card slot on the side.

This Feelworld monitor supports Rec.709, DCIP3 and BT2020 colour spaces. This ensures that the monitor can meet the colour requirements of different media and output formats, and gives videographers and colour correctors the flexibility they need for accurate colour reproduction.

The Feelworld LUT11H has a variety of image evaluation tools built in, including, such as Waveform, Vector, Histogram, RGB Histogram, Focus Peaking, Zoom, Zebra and Safe Frames.

You power the monitor using two NP-F batteries or mains power. The batteries are not included. The monitor has an 8 VDC output to provide extra power to your camera, allowing you to work longer.

Features of the Feelworld 10.1" LUT11H Ultra Bright Camera Field Monitor

• Field monitor
• High-quality IPS LCD panel
• Resolution: 1920 x 1200 pixels
• Aspect ratio: 16:10
• Contrast ratio: 800:1
• Brightness: 2000 cd/m²
• Wide viewing angle: 170 degrees
• View without colour and contrast distortion, ideal for viewing from different angles
• Includes HDMI input and outputs, as well as a DB-9 port and DC 12V power input
• Touchscreen controls
• Supports two NP-F batteries or mains power, 8 VDC output for powering a camera
• Custom 3D LUT support
• Includes an SD card slot to load up to 50 custom LUTs for accurate colour assessment
• Support for different colour spaces
• Compatible with Rec.709, DCIP3, and BT2020 for accurate colour reproduction in various media and output formats
• Advanced image evaluation tools: with features such as Waveform, Vector, Histogram, RGB Histogram, Focus Peaking, Zoom, Zebra, and Safe Frames
• Equipped with 1/4"-20 thread for mounting on magic arms or tripods
• Three customisable buttons on top of the monitor for quick access to frequently used functions
• 3.5mm headphone jack for audio monitoring
• Suitable for both indoor and outdoor use thanks to ultra-bright screen
• Built-in Tally indicators (red, green, yellow)
• Dimensions (LxHxD): 242 x 156 x 23 mm
• Weight: 810 grams

Package contents

• 1x Feelworld 10.1" LUT11H Ultra Bright Camera Field Monitor
• 1x Mini-HDMI cable
• 1x Power adapter
• 1x U-shaped bracket
• 1x Manual
