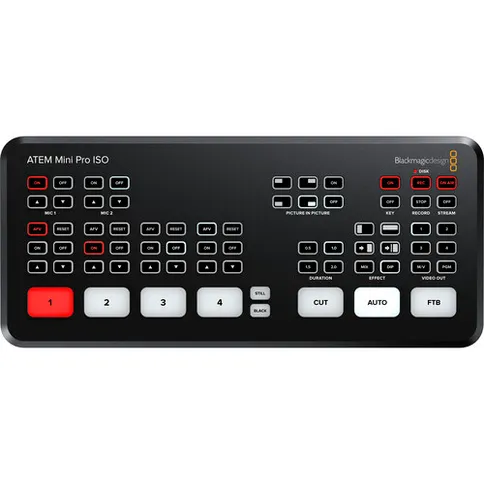

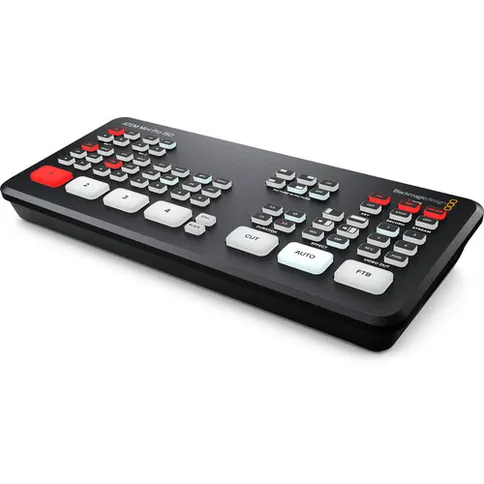

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

The Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher is a four-input live production switcher with an integrated control panel designed for multi-camera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output, as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analogue audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make adjustments using the source material that is already on your USB drive.

The ATEM Mini Pro ISO retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and colour generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

Features of the Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

• 4-channel live stream HDMI switcher
• Program and 4 x input ISO recording
• Generates DaVinci Resolve project
• Live tally, stream, and record status
• Available M/E layers: 5 M/E
• Effect types: 1x DVE, graphic, transition, chroma key, alpha ley, luma key
• Downstream keys: 1x Chroma, DVE, 2x Luma
• Generators: 1x pattern, 2x colour
• Audio mixing: 2-channel mixing
• Video input ports: 4x HDMI female
• Video output: 1x HDMI
• Compatibility: macOS 10.14 or later / Windows 10
• Dimensions: 23.75 x 10.34 x 3.51 cm
• Weight: 550 g

In the box

• Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
• 12V power supply with international adapters
