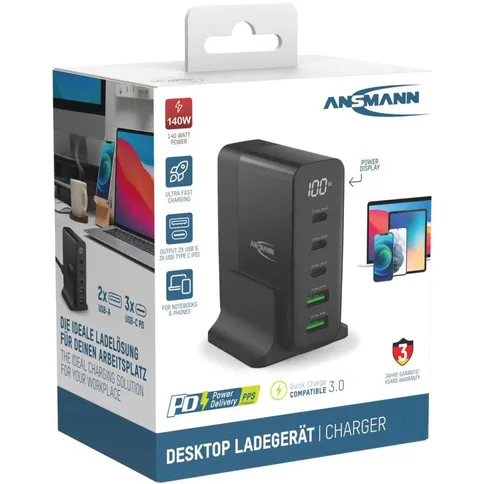

Ansmann DC5140PD Desktop Charger 140W with display

Ansmann DC5140PD Desktop Charger 140W with display

The Ansmann DC5140PD Desktop Charger 140W with display is an intelligent 140W USB charger with GaN technology and LED power indicator for notebooks, Smartphones, tablets and other USB devices. With multiple USB outputs and 140W of power, the USB charger from Ansmann offers the ideal charging solution for your workplace, office or home.
This powerful device charges all your devices - from Smartphones to notebooks - lightning-fast and reliably! Thanks to the intelligent charging control and Multisafe technology, your device is charged optimally and safely. The LED display shows the current power consumption of all connected USB devices at any time. The very low standby consumption makes this charger not only efficient, but also economical.

Silicon-based electronics have been the standard since the 1970s and have rapidly become increasingly powerful. "Moore's Law" predicted a doubling of the performance of silicon-based transistors about every 18 months, which was the case for a long time. Meanwhile, this technology has reached a performance limit that means it cannot become much more efficient and is being replaced by GaN technology.
"GaN" stands for gallium nitrite, a semiconductor technology that can conduct high electrical currents with low heat generation. This makes it possible, for example, to offer high-power USB chargers in significantly smaller sizes.

Features of the Ansmann DC5140PD Desktop Charger 140W with display

.
• Input voltage: 100 - 240 V AC
• Maximum input current: 2.5 A
• AC frequency: 60 Hz / 50 Hz
• Connector: USB type C, USB-A
• Output voltage: 5 - 20 V DC
• Maximum output current: 5 A
• Maximum power: 140 W
• Features: Overcurrent protection, Short-circuit protection, Temperature control
.
• Charge protocol: PPS, Quick Charge 3.0, Power Delivery Profile 3
• USB ports: 5
• Average operating efficiency: 76.5%
• Low load efficiency: 72.8%
• Current consumption at no load: 0.220 W
• Storage temperature: -40 - 80 °C
• Operating temperature: 0 - 25 °C
• Colour: black

Contents of the package

• 1x Ansmann DC5140PD Desktop Charger 140W with display
• User manual
