Hikmicro Mini2 V2 Thermal Camera
The Hikmicro Mini2 V2 Thermal Camera is a thermal imaging camera for Android and iOS (USB Type-C) with focus-free wide-angle lens (field of view 50° x 37.2°), IR resolution 256 x 192 (49,152 pixels), temperature range -20 to +350 °C.
237 €
Back in stock soon
The Hikmicro Mini2 V2 Thermal Camera is a thermal imaging camera for Android and iOS (USB Type-C) with focus-free wide-angle lens (field of view 50° x 37.2°), IR resolution 256 x 192 (49,152 pixels), temperature range -20 to +350 °C.
Promotions and services
Reviews
Description
Hikmicro Mini2 V2 Thermal Camera
The Hikmicro Mini2 V2 Thermal Camera is a thermal imaging camera for Android and iOS (USB Type-C) with focus-free wide-angle lens (field of view 50° x 37.2°), IR resolution 256 x 192 (49,152 pixels), temperature range -20 to +350 °C.

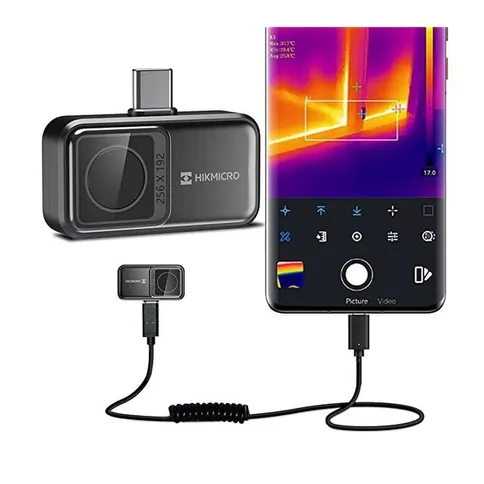

The Hikmicro Mini2 V2 thermal camera for Android and iOS is compact but powerful. It weighs just 20 grams and has a USB-C/Lightning interface, so it can be easily connected to your Android or iOS smartphone or tablet and be ready to use within seconds.
The camera is battery-free, so there is no need to charge it or find a charging cable. It is powered by your phone and is designed to use very little power to maximise your mobile device's uptime and always be available. The Hikmicro Mini2 with a 50° wide-angle lens offers a wide field of view, which is ideal for scanning walls, floors and facades to find problems such as water leaks, insulation problems and air infiltration.
The high frame rate of 25 Hz ensures that thermal video recordings are smooth and shock-free, with no details lost in the recording. The Mini2 is battery-free, so you never need to charge it or find a charging cable. It is powered by the phone, is designed to operate on very little power to maximise the usage time of your mobile device and is ready when you are.
Designed for where you work, live or relax, the Mini2 features IP40-rated aluminium alloy housings and passes rigorous drop tests of up to 1 metre.
A 40 cm extension cord connects your device to the camera, allowing you to remotely view and inspect through narrow, confined openings or hard-to-reach places. Also included is an 18-mm extension plug to place smartphones or tablets in a protective case. A storage case is included to store your camera.
The Hikmicro Mini2 is compatible with the free Hikmicro Viewer APP for Android (Type-C) smartphones or tablets. It offers an easy-to-use user interface and powerful temperature measurement and analysis features, including high-temperature alarms, 15 colour palettes, 9 measurement areas and image sharing.
Features of the Hikmicro Mini2 V2 Thermal Camera
- IR resolution: 256 x 192 (49,152 pixels)
- Field of view (FOV): 50° x 37.2°
- Object temperature range: -20 to 400 °C
- NETD: < 40 mK (@ 25 °C, F#=1.0)
- Image frequency: 25 Hz
- Accuracy: ±2 °C / ±2 %
- Interface: Type-C USB / Lightning
- Focus mode: focus-free
- Minimum focus distance: 0.2 m
- Focal length: 3.5 mm
- Drop test height: 1 m
- Protection level: IP40
- Power supply: smartphone battery
- Compatibility: iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices
- Dimensions: 42 x 22.5 x 11.2 mm
- Weight: 20 grams
Package contents
- 1x Hikmicro Mini2 V2 Thermal Camera
- 1x Lightning adapter
- 1x USB-C extension adapter
- 1x USB-C extension cable
- 1x Protective case
- 1x Quick Start Guide
Hikmicro Mini2 V2 Thermal Camera
The Hikmicro Mini2 V2 Thermal Camera is a thermal imaging camera for Android and iOS (USB Type-C) with focus-free wide-angle lens (field of view 50° x 37.2°), IR resolution 256 x 192 (49,152 pixels), temperature range -20 to +350 °C.
The Hikmicro Mini2 V2 thermal camera for Android and iOS is compact but powerful. It weighs just 20 grams and has a USB-C/Lightning interface, so it can be easily connected to your Android or iOS smartphone or tablet and be ready to use within seconds.
The camera is battery-free, so there is no need to charge it or find a charging cable. It is powered by your phone and is designed to use very little power to maximise your mobile device's uptime and always be available. The Hikmicro Mini2 with a 50° wide-angle lens offers a wide field of view, which is ideal for scanning walls, floors and facades to find problems such as water leaks, insulation problems and air infiltration.
The high frame rate of 25 Hz ensures that thermal video recordings are smooth and shock-free, with no details lost in the recording. The Mini2 is battery-free, so you never need to charge it or find a charging cable. It is powered by the phone, is designed to operate on very little power to maximise the usage time of your mobile device and is ready when you are.
Designed for where you work, live or relax, the Mini2 features IP40-rated aluminium alloy housings and passes rigorous drop tests of up to 1 metre.
A 40 cm extension cord connects your device to the camera, allowing you to remotely view and inspect through narrow, confined openings or hard-to-reach places. Also included is an 18-mm extension plug to place smartphones or tablets in a protective case. A storage case is included to store your camera.
The Hikmicro Mini2 is compatible with the free Hikmicro Viewer APP for Android (Type-C) smartphones or tablets. It offers an easy-to-use user interface and powerful temperature measurement and analysis features, including high-temperature alarms, 15 colour palettes, 9 measurement areas and image sharing.
Features of the Hikmicro Mini2 V2 Thermal Camera
- IR resolution: 256 x 192 (49,152 pixels)
- Field of view (FOV): 50° x 37.2°
- Object temperature range: -20 to 400 °C
- NETD: < 40 mK (@ 25 °C, F#=1.0)
- Image frequency: 25 Hz
- Accuracy: ±2 °C / ±2 %
- Interface: Type-C USB / Lightning
- Focus mode: focus-free
- Minimum focus distance: 0.2 m
- Focal length: 3.5 mm
- Drop test height: 1 m
- Protection level: IP40
- Power supply: smartphone battery
- Compatibility: iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices
- Dimensions: 42 x 22.5 x 11.2 mm
- Weight: 20 grams
Package contents
- 1x Hikmicro Mini2 V2 Thermal Camera
- 1x Lightning adapter
- 1x USB-C extension adapter
- 1x USB-C extension cable
- 1x Protective case
- 1x Quick Start Guide
