Blackmagic ATEM SDI Pro ISO

The Blackmagic ATEM SDI Pro ISO includes all the features of the ATEM SDI model, with the added option of built-in streaming and recording function up to 5 streams.This live production switcher has four 3G-SDI inputs and an integrated control panel. The four SDI inputs are suitable for 1080p60 video. The two 3G-SDI outputs are useful for a projector or external monitor, a USB Type-C output for streaming video up to 1080p60 to a computer and an RJ45, 10/100 Ethernet port for Live-Streaming, system management, network control and upgrades.

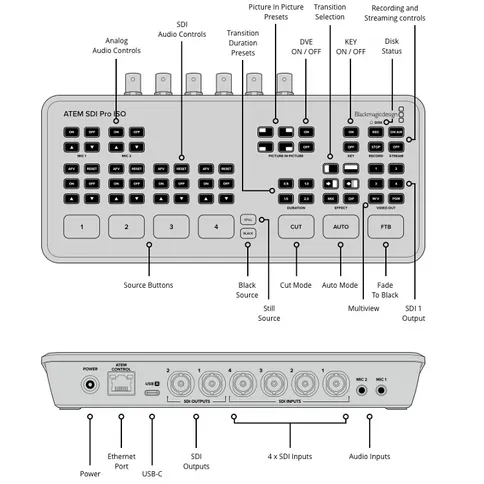

The ATEM SDI Pro ISO's control surface features easy-to-read backlit buttons for selecting camera inputs, transitions, keyers, settings and the DVE. The ATEM SDI Pro ISO features upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator and also two colour generators. Media player support is also available for fill and key images, supporting up to 20 images in PNG, TGA, BMP, JPEG and TIFF formats. The SDI output supports a resolution of at least 1366x768 for monitoring your stream(s). It also supports the ATEM Software Control Panel via Ethernet, and it supports control and configuration using the ATEM SDI Pro ISO.

With the ATEM SDI Pro, you can stream live to YouTube, Facebook, Twitch and others in no time without sacrificing quality. If you are live streaming on location, you have the option to use mobile data and make backups via your smartphone. You also have the option of transferring your streams to USB flash disks.

Features of the Blackmagic ATEM SDI Pro ISO

• Suitable for Mac iOS 11, 12 or higher
• Suitable for Windows 10 and 11
• No need for an additional media player for graphic files
• Use two separate sources to create one image
• Generates DaVinci Resolve projects
• Upstream and Downstream keyers
• Chroma and Luma keyers
• Live Stream and Recording Status
• Compact and weighs only 678g

Package contents

• Blackmagic ATEM SDI Pro ISO
